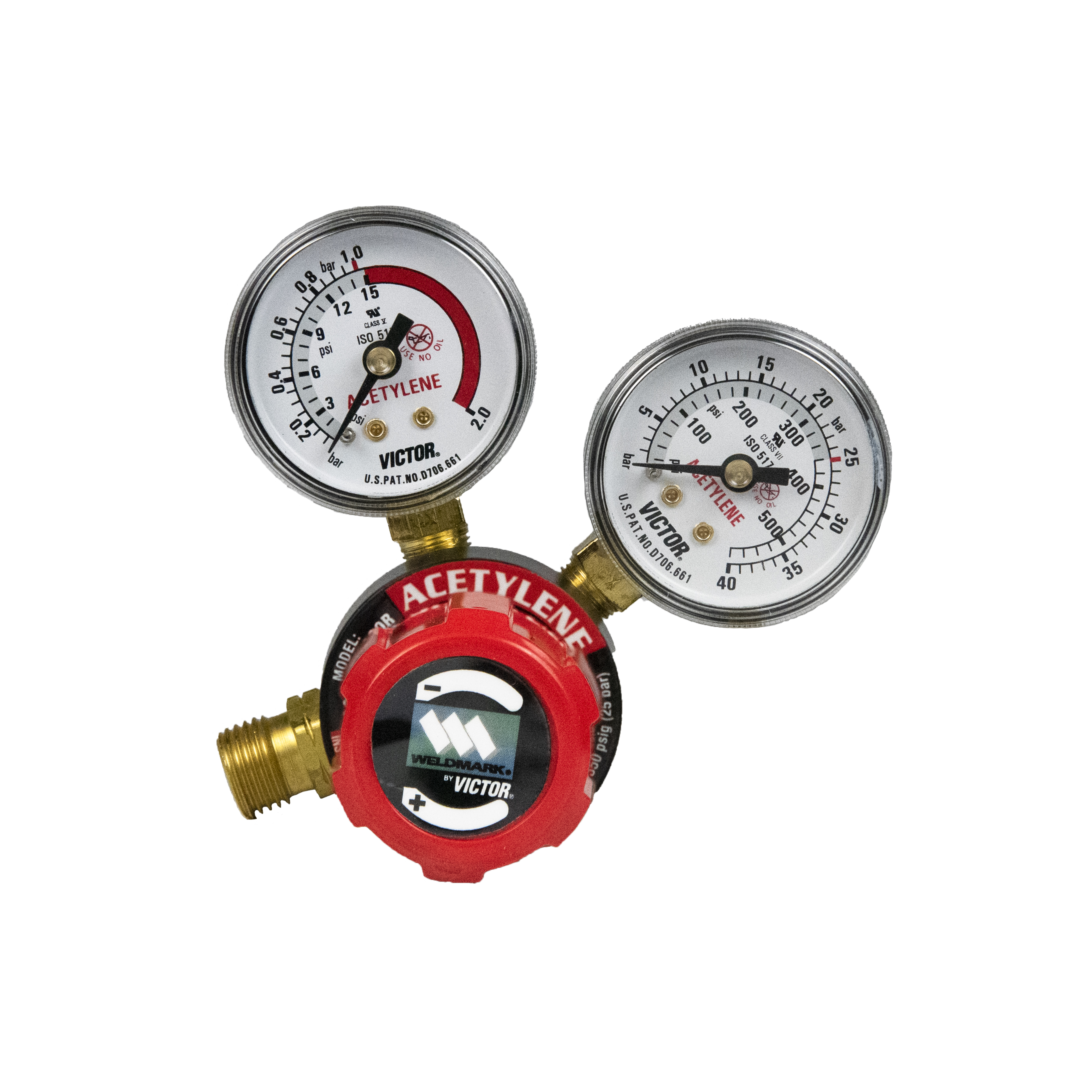

Description
Connection Tightening Method – Wrench
Diaphragm Material – Fabric Reinforced Neoprene
Gauge Diameter – 1.50000
HTS Classification Number – 8481100090
Inlet CGA Number – 200
Inlet Connection Gender – Female
Inlet Connection Location – Rear Port
Inlet Connection Size – .628
Inlet Pipe Size – 0.6280
Inlet Pressure Cylinder ~ Max – 350
Inlet Pressure Gauge Max – 500
Inlet Pressure ~ Max – 350
Inlet Thread Standard – NGO
Inlet Threads Per Inch – 20.00
Item Depth US – 7.0000
Item Width US – 6.3000
Outlet CGA Number – 023
Outlet Connection Gender – Male
Outlet Connection Size Description – 9/16″
Outlet Fitting Type – B Size
Outlet Pipe Size – 0.5625
Outlet Pressure Gauge Max – 15
Outlet Pressure ~ Max – 15.00
Outlet Pressure ~ Min – 2.00
Outlet Thread Direction – Left Hand
Outlet Thread Standard – UNF
Outlet Threads Per Inch – 18.00
Regulator Adjustment Type – Plastic Knob
Regulator Body Material – Brass
Regulator Bonnet Material – High Strength Alloy
Regulator Gas Service – Acetylene|C2H2
Regulator Gauge Type – Dual
Regulator Housing Cap Material – Zinc Aluminum
Regulator Model – G150-15-200R
Regulator Mount Type – Cylinder Mount
Regulator Relief Valve Type – Internal
Regulator Series – G 150
Regulator Side CGA Number – 200
Regulator Side Thread Direction – Right Hand
Regulator Side Thread Form Type – NGO
Regulator Stage – Single
